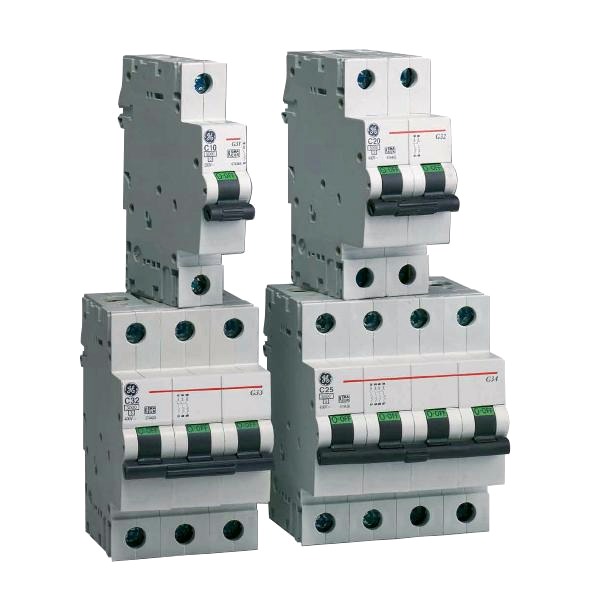

G.E.Térmico T/RIEL 3P 25A Plomo 10kA 240/415V UNIBIS

Descripción

Ficha Técnica: Codigo: 692569 Marca: General Electric Unidad: Pieza [ PZA ] Cantidad: Comprar

MCB DIN-rail

Ref. No.: 692567 Cat. No.:

Miniature circuit breaker UNIBIS EPC 60 3P 2m 6kA C 16A GE

EAN13: 5413656925675

SPECIFICATIONS

FamilyCircuit protection

In (A)16

Number of poles3P

Number of modules2

Curve TypeC (5-10 In)

GroupElfaPlus Unibis (compact)

RangeCommercial;Residential

SwitchEPC60 : 6kA

Connections- TopScrew

Connections- BottomScrew

Standards6kA domestic EN 60898;7.5kA industrial EN 60947-2

AC/DCAC

ApprovalsCE;CEBEC;IMQ;NF;VDE

Rated voltage240 V / 415 V

Short-circuit capacity (kA)6

Selectivity class3

Terminal capacity max (mm²)10-16 mm²

Electrical service life20000/10000

Minimum operating voltage Ubmin (V)12 V

Operating temperature-25°C / 55°C

Terminal capacity min (mm²)0.75 / 1 mm²

Tropicalisation95%RH at 55°C

Standard packing6

DIMENSIONS

Weight0.32 kg

CLASSIFICATION

ETIM 5.0EC000042

CAD COMMERCIAL DRAWINGS

3D Filesstp

3D Files – interactive 3D view in PDF formatpdf
